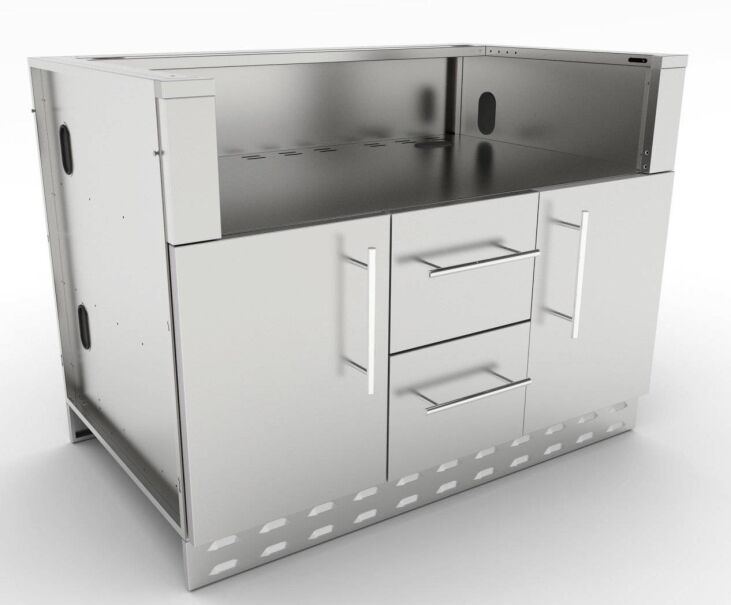

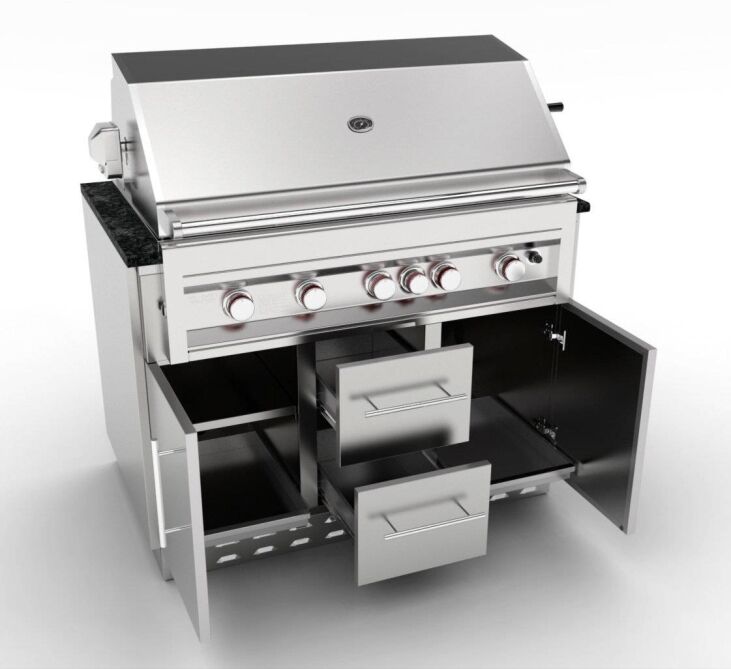

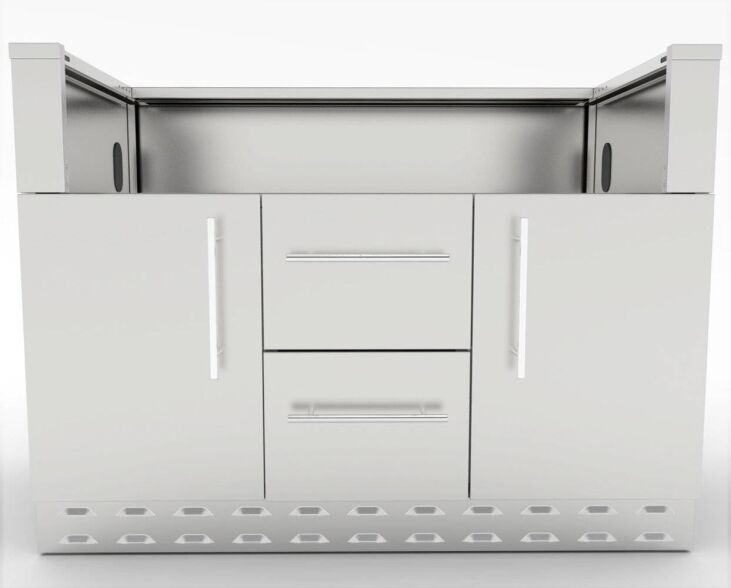

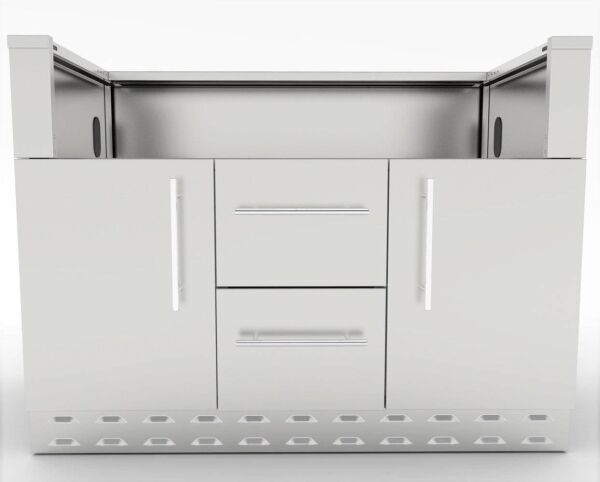

The 46 In. Sunstone Gas Grill Base Cabinet is uniquely designed to receive multiple Gas Grill Brand Models right out of the box for easy installation. The cabinet comes standard with a Right & Left Side Door Enclosure for a Propane Tank or Trash Bin with Two Center Large Drawers with ample Storage Space for all your BBQ Utensils, Rubs and Sauces. The cabinet comes Fully Assembled, only requiring to fasten on the four Peg-Legs (included), screw in place each 304 SS Rod Handles and mount the Front and Back Kick-Plates. This Cabinet makes use of a “TRIM-KIT” that is installed on the front face of cabinet, which adapts the cabinet to fit your preferred grill, and is compatible with Grills “CUT-OUT” Sizes between 35-3/4 In. to 41 In. Width by 8 In. to 10 1/4 In. Max Height with counter at 3/4 In. Height with Filler Rail installed or removed. Additional Height can be adjusted by Removing Bottom Filler Rail or by adding a Thicker Counter or Backer Board. Please Specify the Correct “TRIM-KIT” to be included with cabinet to fit your grill, if your grill is any of our Models we will automatically include the correct Trim-Kit. Please refer to the Cabinets Specification Sheet for more information, see the second page showing the various insert sleeve dimensions, this refers to your grills “Cut-Out” Dimension – match this up to the correct “Trim-Kit” and specify this piece on your order.
  • Lifetime Structure Warranty
  • 304 Stainless Steel Structure
  • 304 SS Rod Handles
  • Front Vented Kick-Plate
  • Rear Solid Kick-Plate
  • Soft-Close Drawer Tracks
  • Easy Pin-Lock Installation
  • Removable Counter Rail

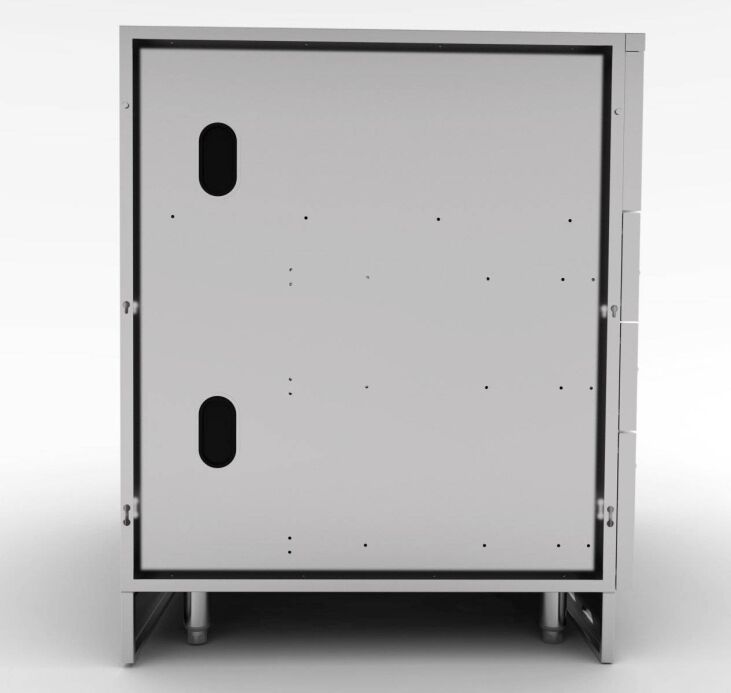

  • Covered Side Wall Access Ports
  • 4 Adjustable Peg-Legs
  • Optional Wheel Casters
  • Replaceable Face Panel
  Separately purchase the Side Cabinet End Panel & End Kick-Plate Item No. SCC25KP, & SCC27EP

46″ Sunstone Gas Grill Base Cabinet – Item No. SAC46GLPCD

$3,623.00

In Stock - Ready for shipping within 2 Business Days

  • Lifetime Structure Warranty
  • Front Vented Kick-Plate
  • Soft-Close Drawer Tracks
  • Easy Pin-Lock Installation
  • Product Size: 46"W x 28-1/4"D x 34-1/2"H (w/Legs)
  • Product Size: 46"W x 28-1/4"D x 30-1/2"H (without Legs)

ADA Compliant Legs & Kick Plates

Provides ADA Compliant Height of 34" w/Counter of 1-1/2" Thickness

(2) SAWC (2) SLWC

Convert Cabinet to Rolling Grill Cart

(SCC25KP) + End Panel (SCC27EP)

Single Set of End Panel and End Kick Plate

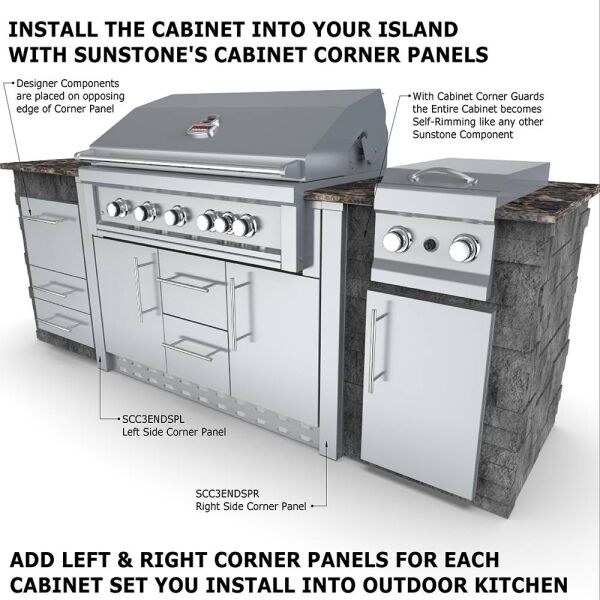

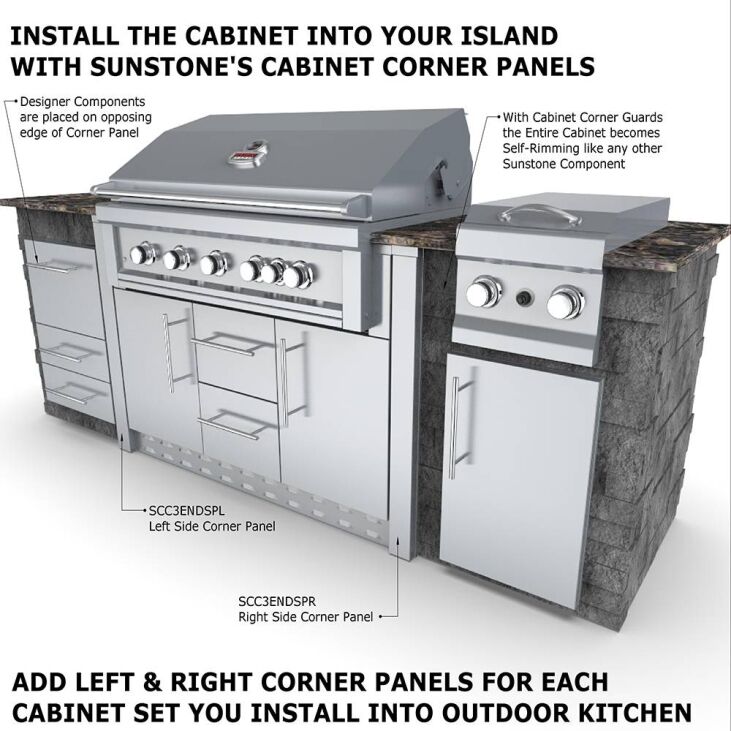

SCC3ENDSPL & SCC3ENDSPR

Transition from Cabinet to Island Construction

Select Grill Options

Sunstone® 5-Burner Pro-Sear Infrared Grill Ruby Series – Ultimate High-Performance Outdoor Cooking Station | RUBY5BIR
Sunstone® 5-Burner Pro-Sear Infrared Grill Ruby Series – Ultimate High-Performance Outdoor Cooking Station | RUBY5BIR $3,873.00

SAC46GLPCD TRIM-KIT

Select the corresponding Trim-Kit which most closely matches up with the Appliance or Grill Cut-Out so that it may slide into the sleeve of the trim-kit. See Tooltip for exact Trim-Kit Sleeve Opening. Refer to Product Option for recommended appliance or grill insertable options. See Disclaimer Below.

40-1/2" W x 10-1/4" H x 24-1/2" Maximum Depth

Product Option: Alfresco® 42" Grill, Lynx® 42" Grill

39-1/2" W x 10-1/4" H x 24-1/2" Maximum Depth

Product Option: Ruby® 42" Grill, Bull® 38" Brahma Grill, Coyote® 42" grill

38-1/4" W x 8" H w/Rail or 10-1/4" Height wo/Support Rail x 24-1/2" Maximum Depth

Product Option: Steele® 40" Grill, Blaze® 40" Grill

36-7/8" W x 8" H w/Rail or 10-1/4" Height wo/Support Rail x 24-1/2" Maximum Depth

Product Option: Delta Heat® 38" Grill, AOG® 36" Grill

35-3/4" W x 8" H w/Rail or 10-1/4" Height wo/Support Rail x 24- 1/2" Maximum Depth

Product Option: Lynx® 36" Grill, Sedona® 36" Grill

Order total:

Product Documents

The 46″ Sunstone Gas Grill Base Cabinet (Item No. SAC46GLPCD) is a product that offers several key features, benefits, and unique selling points. It provides a sturdy and functional base for a gas grill, making outdoor cooking convenient and enjoyable. The cabinet is designed with high-quality stainless steel, ensuring durability and resistance to weather elements. It includes ample storage space for grilling accessories, tools, and propane tanks. The cabinet also features a built-in trash bag holder, making cleanup hassle-free. With its sleek design and practical features, the 46″ Sunstone Gas Grill Base Cabinet is an excellent addition to any outdoor cooking setup.

Customer reviews

0.00
Based on 0 review
5
0%
4
0%
3
0%
2
0%
1
0%

Submit Product Review

This site uses Akismet to reduce spam. Learn how your comment data is processed.

46″ Sunstone Gas Grill Base Cabinet – Item No. SAC46GLPCD

$3,623.00

In Stock - Ready for shipping within 2 Business Days

  • Lifetime Structure Warranty
  • Front Vented Kick-Plate
  • Soft-Close Drawer Tracks
  • Easy Pin-Lock Installation
  • Product Size: 46"W x 28-1/4"D x 34-1/2"H (w/Legs)
  • Product Size: 46"W x 28-1/4"D x 30-1/2"H (without Legs)

ADA Compliant Legs & Kick Plates

Provides ADA Compliant Height of 34" w/Counter of 1-1/2" Thickness

(2) SAWC (2) SLWC

Convert Cabinet to Rolling Grill Cart

(SCC25KP) + End Panel (SCC27EP)

Single Set of End Panel and End Kick Plate

SCC3ENDSPL & SCC3ENDSPR

Transition from Cabinet to Island Construction

Select Grill Options

Sunstone® 5-Burner Pro-Sear Infrared Grill Ruby Series – Ultimate High-Performance Outdoor Cooking Station | RUBY5BIR
Sunstone® 5-Burner Pro-Sear Infrared Grill Ruby Series – Ultimate High-Performance Outdoor Cooking Station | RUBY5BIR $3,873.00

SAC46GLPCD TRIM-KIT

Select the corresponding Trim-Kit which most closely matches up with the Appliance or Grill Cut-Out so that it may slide into the sleeve of the trim-kit. See Tooltip for exact Trim-Kit Sleeve Opening. Refer to Product Option for recommended appliance or grill insertable options. See Disclaimer Below.

40-1/2" W x 10-1/4" H x 24-1/2" Maximum Depth

Product Option: Alfresco® 42" Grill, Lynx® 42" Grill

39-1/2" W x 10-1/4" H x 24-1/2" Maximum Depth

Product Option: Ruby® 42" Grill, Bull® 38" Brahma Grill, Coyote® 42" grill

38-1/4" W x 8" H w/Rail or 10-1/4" Height wo/Support Rail x 24-1/2" Maximum Depth

Product Option: Steele® 40" Grill, Blaze® 40" Grill

36-7/8" W x 8" H w/Rail or 10-1/4" Height wo/Support Rail x 24-1/2" Maximum Depth

Product Option: Delta Heat® 38" Grill, AOG® 36" Grill

35-3/4" W x 8" H w/Rail or 10-1/4" Height wo/Support Rail x 24- 1/2" Maximum Depth

Product Option: Lynx® 36" Grill, Sedona® 36" Grill

Order total:

Customer reviews

4.81
Based on 562 reviews
5
83%
464
4
16%
92
3
1%
6
2
0%
0
1
0%
0
1 2 ... 47
Ron Dill
July 22, 2025
good quality parts
Helpful? 0 0
Steven Spencer
September 14, 2023
What is the minimum counter depth to install Ruby 4 Burner Pro-Sear 36″ with a wall behind the grill? (I understand from the manual that the cut out ...More
What is the minimum counter depth to install Ruby 4 Burner Pro-Sear 36″ with a wall behind the grill?

(I understand from the manual that the cut out is is 22", and that I need to leave at least 4" behind the back of the grill and the wall, but what I don't understand is how far the back of the grill extends behind the cut out. Because I don't know how far the back of the grill extends behind the cut out, I can't calculate the counter depth I need to leave 4" between the back of the grill and the wall.)
Reply from Zeke Neumann:
Hi - Measuring from the back of the grills FireBox it is 3-5/8" to the back edge of grill, and from the cut-out line its between 2-3 inches. The hood ...More
Hi - Measuring from the back of the grills FireBox it is 3-5/8" to the back edge of grill, and from the cut-out line its between 2-3 inches. The hood extends an additional 3" when Open, so is why you need a minimum 4" clearance. All this is illustrated on the grills Specification Sheet, you can download in the section box Downloads. Our office is open Monday 9AM Central TIme, at 512-487-5116 if you have additional questions.
