1 / 7Key features
- Fits RUBY3B, SUNCHSZ30 and grills up to 26" W x 22" D x 10" H (12" H with vent panel removed)
- Cut-out: 31-1/2" W x 24-1/4" D x 13" H
- Double-walled 304 stainless steel, zero clearance
- Pass-through venting for heat and gas
- Covered utility ports
- Minor assembly; optional peg-legs for table or block use
Description

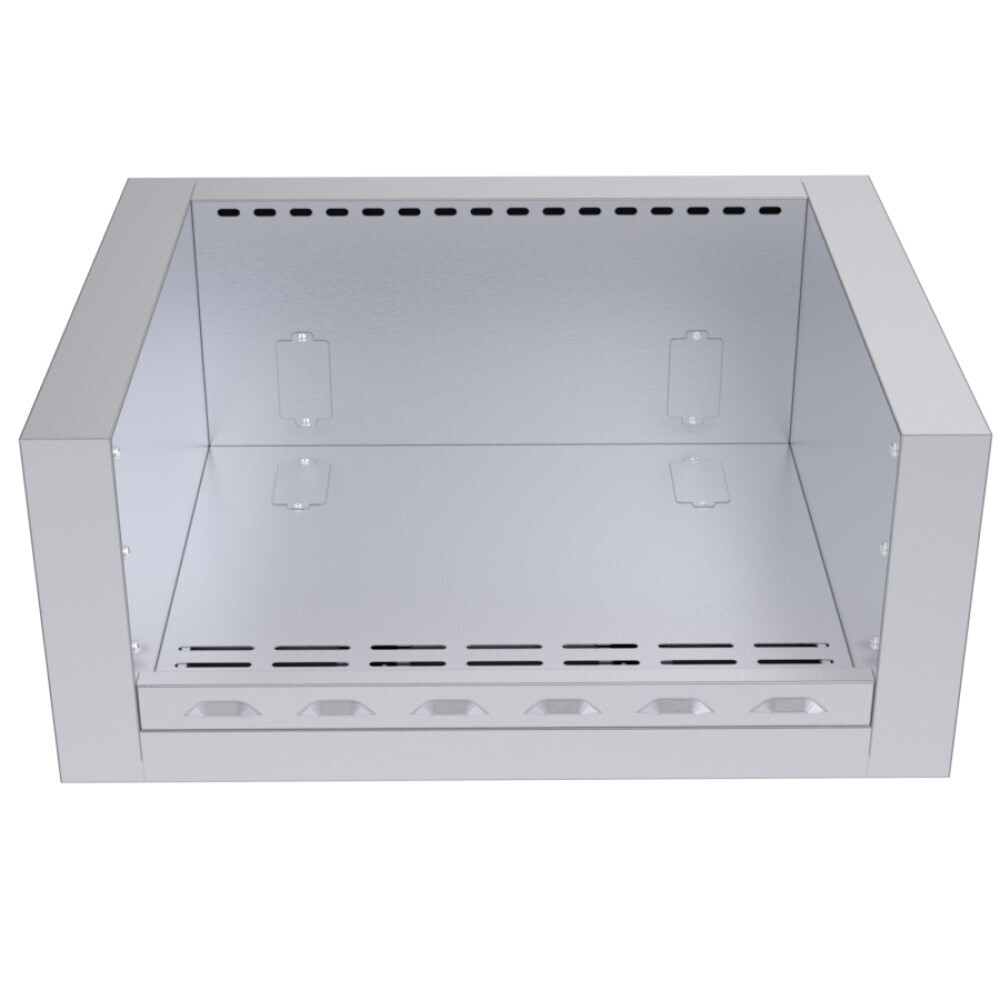

The 33" Sunstone Universal Appliance Jacket (SUNJK33) is built for the RUBY3B and SUNCHSZ30 and takes many other gas and hybrid grill brands out of the box with minor assembly. It is double-walled 304 stainless steel and gives the grill a heat barrier and proper venting inside an outdoor kitchen or BBQ island.
It fits grills up to 26" W x 22" D x 10" H, or 12" H with the vent panel removed. The jacket needs a 31-1/2" W x 24-1/4" D x 13" H cut-out and is a zero clearance design. The grill rests on the upper rim and hangs free inside, and a self-supporting raised ledge runs around the sides and back.
Vents at the lower front and upper back edges pass excess heat and gas through. Covered utility ports let you open only the side your gas or electrical line uses. It works with natural gas or propane. Fasten a cabinet peg-leg in each bottom corner to set the jacket and grill on a picnic table or blocks before the island is ready.
| Name | 33" Sunstone Universal Appliance Jacket - SUNJK33 |
|---|---|
| Item No. | SUNJK33 |
| Series | Grill & Burner Jackets |
| Product size | 33" W |
| Cut-out | 31-1/2" W x 24-1/4" D x 13" H |
Specifications
| Width | 33" |
|---|---|
| Cut-Out Size | 31-1/2" W x 24-1/4" D x 13" H |
| Fuel Type | Natural gas or propane |
| Material | 304 Stainless Steel |
| Assembly | Minor Assembly Required |
| Installation | Built-in, Post-mount (with SUNJKPOST) |
| Compatibility | RUBY3B & SUNCHSZ30 |
| Max Appliance Size | 26" W x 22" D x 10" H (12" H with the vent panel removed) |
| Design | Zero Clearance Design |
| Max Burner Cut-Out Width | 26" |
| Clearance | Zero Clearance |
| Raised Burner Height | 1" above Counter |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $798.00 | $702.00 | $678.00 | $1,423.00 | $1,485.00 |
| SKU | SUNJK33 | SUNJK29 | SUNJK25 | SUNJK40 | SUNJK45 |
| Width | 33" | 29" | 25" | 40" | 45" |
| Cut-Out Width | 31-1/2" | 27-3/4" | 19" | 38-3/4" | 43-1/2" |
| Cut-Out Depth | 24-1/4" | 24-1/4" | 20-1/2" | 24-1/4" | 24-1/4" |
| Cut-Out Height | 13" | 13" | 13" | 13" | 13" |
| Fuel Type | Natural gas or propane | Not listed | Natural gas or propane | Not listed | Not listed |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Assembly | Minor Assembly Required | Minor Assembly Required | Minor Assembly Required | Minor Assembly Required | Minor Assembly Required |
| Installation | Built-in, Post-mount (with SUNJKPOST) | High or Low position | Built-in, Post-mount (with SUNJKPOST) | Built-in, Post-Mount (with accessories) | Not listed |
| Compatibility | RUBY3B & SUNCHSZ30 | Most burners with max 23" W x 12" H x 22" D cut-out | Power Burners having a maximum cut-out of 19 In | RUBY4B & RUBY4BIR, most burners with max 34" W x 12" H x 22" D cut-out | RUBY5BIR & EMCHDZ42, most burners with max 39"W x 12"H x 22"D cut-out |
| Max Appliance Size | 26" W x 22" D x 10" H (12" H with the vent panel removed) | 23" W x 22" D x 10" H (12" H with the vent panel removed) | 19" W x 20.5" D x 10" H (12" H with the vent panel removed) | 34" W x 22" D x 10" H (12" H with the vent panel removed) | 39" W x 22" D x 10" H (12" H with the vent panel removed) |
| Raised Burner Height | 1" above Counter | 1" above Counter | Not listed | 1" above Counter | 1" above Counter |
| Design | Zero Clearance Design | Not listed | Zero Clearance, Double Walled | Not listed | Zero Clearance, Double Walled, Universal Utility Ports |
| Max Burner Cut-Out Width | 26" | Not listed | Not listed | 34" | 39" |
| Clearance | Zero Clearance | Not listed | Not listed | Zero Clearance Design | Not listed |
| You're viewing this | View model | View model | View model | View model |
Documents (1)
Warranty
Warranty
Coverage depends on the product. See the warranty page for the full terms.
Shipping & returns
Shipping & Delivery
All orders ship free to the 48 contiguous United States.
Larger (freight) shipments are curb-side only. A signature and possibly assistance may be required for unloading. We will work with you to arrange a delivery date and time, but the final details will be between you and the freight carrier.
IMPORTANT: ALL LTL DELIVERIES ARE CURBSIDE UNLESS WHITE GLOVE FEES ARE PAID. All reports of damage must be made within 3 business days after delivery.
Receiving Your Shipment
When the shipment arrives, please do the following:
- Inspect every box carefully before signing. There is no such thing as damage that is too small: dents, tears, crushed corners, punctures, or scuffs should all be noted.
- Take clear photos of any box that shows damage.
- On the delivery receipt, write down exactly how many boxes have visible damage. If it is electronic, have the driver show you where to notate the damage. Before handing it back, take a photo of the document showing your notation.
After the driver leaves, please immediately open and inspect the items themselves. If you find any damage, contact us with the following:
- A photo of the item unboxed with the damage visible
- A close-up photo of the actual damage
- A photo of the delivery document where you noted the box damage
These steps ensure we can file a claim quickly and get any replacement parts or items to you without delay.
Returns & Exchanges
Returns are accepted within 60 days of original purchase, in original packaging and unused, for a full refund minus a 15% Restocking Fee.
We recommend insuring products when shipping back to us. Returns will be rejected if the product is received damaged.
