1 / 7Key features
- For the SUN24PCB and most burners up to a 23" W x 12" H x 22" D cut-out
- Installs in a high or low position
- Double-walled 304 stainless steel
- Pass-through venting for heat and gas
- Covered left and right utility ports
- Minor assembly; optional peg-legs for table or block use
Description

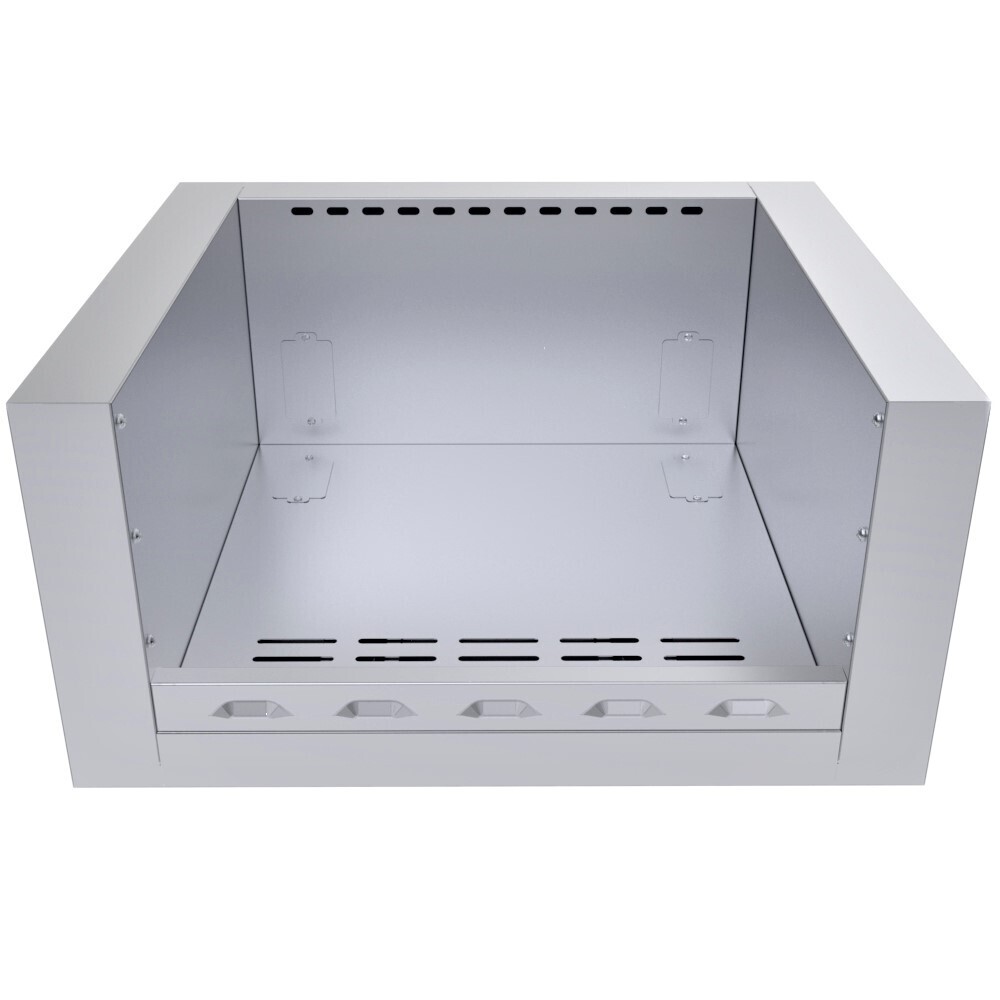

The 29" Sunstone Universal Appliance Jacket (SUNJK29) is made for the SUN24PCB power burner and also takes several other power burner brands out of the box with minor assembly. It is double-walled 304 stainless steel and gives the burner a heat barrier and proper venting inside an outdoor kitchen or BBQ island.
It fits most burners with a maximum cut-out of 23" W x 12" H x 22" D and installs in either a high or low position. The burner rests on the upper rim and hangs free inside. A self-supporting raised ledge runs around the sides and back.
Vents at the lower front and upper back edges pass excess heat and gas through. Covered utility ports stay closed except the one your gas or electrical line uses. It works with natural gas or propane. With a cabinet peg-leg fastened to each bottom corner, the jacket can sit on a picnic table or blocks until the island is built.
| Name | 29" Sunstone Universal Appliance Jacket - SUNJK29 |
|---|---|
| Item No. | SUNJK29 |
| Series | Grill & Burner Jackets |
| Product size | 29" W |
| Cut-out | 27-3/4" W × 24-1/4" D × 13" H |
Specifications
| Width | 29" |
|---|---|
| Cut-Out Size | 27-3/4" W × 24-1/4" D × 13" H |
| Material | 304 Stainless Steel |
| Assembly | Minor Assembly Required |
| Installation | High or Low position |
| Max Appliance Size | 23" W x 22" D x 10" H (12" H with the vent panel removed) |
| Raised Burner Height | 1" above Counter |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $702.00 | $678.00 | $798.00 | $1,423.00 | $1,485.00 |
| SKU | SUNJK29 | SUNJK25 | SUNJK33 | SUNJK40 | SUNJK45 |
| Width | 29" | 25" | 33" | 40" | 45" |
| Cut-Out Width | 27-3/4" | 19" | 31-1/2" | 38-3/4" | 43-1/2" |
| Cut-Out Depth | 24-1/4" | 20-1/2" | 24-1/4" | 24-1/4" | 24-1/4" |
| Cut-Out Height | 13" | 13" | 13" | 13" | 13" |
| Fuel Type | Not listed | Natural gas or propane | Natural gas or propane | Not listed | Not listed |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Assembly | Minor Assembly Required | Minor Assembly Required | Minor Assembly Required | Minor Assembly Required | Minor Assembly Required |
| Installation | High or Low position | Built-in, Post-mount (with SUNJKPOST) | Built-in, Post-mount (with SUNJKPOST) | Built-in, Post-Mount (with accessories) | Not listed |
| Compatibility | Most burners with max 23" W x 12" H x 22" D cut-out | Power Burners having a maximum cut-out of 19 In | RUBY3B & SUNCHSZ30 | RUBY4B & RUBY4BIR, most burners with max 34" W x 12" H x 22" D cut-out | RUBY5BIR & EMCHDZ42, most burners with max 39"W x 12"H x 22"D cut-out |
| Max Appliance Size | 23" W x 22" D x 10" H (12" H with the vent panel removed) | 19" W x 20.5" D x 10" H (12" H with the vent panel removed) | 26" W x 22" D x 10" H (12" H with the vent panel removed) | 34" W x 22" D x 10" H (12" H with the vent panel removed) | 39" W x 22" D x 10" H (12" H with the vent panel removed) |
| Raised Burner Height | 1" above Counter | Not listed | 1" above Counter | 1" above Counter | 1" above Counter |
| Design | Not listed | Zero Clearance, Double Walled | Zero Clearance Design | Not listed | Zero Clearance, Double Walled, Universal Utility Ports |
| Max Burner Cut-Out Width | Not listed | Not listed | 26" | 34" | 39" |
| Clearance | Not listed | Not listed | Zero Clearance | Zero Clearance Design | Not listed |
| You're viewing this | View model | View model | View model | View model |
Documents (1)
Warranty
Warranty
Coverage depends on the product. See the warranty page for the full terms.
Shipping & returns
Shipping & Delivery
All orders ship free to the 48 contiguous United States.
Larger (freight) shipments are curb-side only. A signature and possibly assistance may be required for unloading. We will work with you to arrange a delivery date and time, but the final details will be between you and the freight carrier.
IMPORTANT: ALL LTL DELIVERIES ARE CURBSIDE UNLESS WHITE GLOVE FEES ARE PAID. All reports of damage must be made within 3 business days after delivery.
Receiving Your Shipment
When the shipment arrives, please do the following:
- Inspect every box carefully before signing. There is no such thing as damage that is too small: dents, tears, crushed corners, punctures, or scuffs should all be noted.
- Take clear photos of any box that shows damage.
- On the delivery receipt, write down exactly how many boxes have visible damage. If it is electronic, have the driver show you where to notate the damage. Before handing it back, take a photo of the document showing your notation.
After the driver leaves, please immediately open and inspect the items themselves. If you find any damage, contact us with the following:
- A photo of the item unboxed with the damage visible
- A close-up photo of the actual damage
- A photo of the delivery document where you noted the box damage
These steps ensure we can file a claim quickly and get any replacement parts or items to you without delay.
Returns & Exchanges
Returns are accepted within 60 days of original purchase, in original packaging and unused, for a full refund minus a 15% Restocking Fee.
We recommend insuring products when shipping back to us. Returns will be rejected if the product is received damaged.
Customer reviews
About our reviews: they come from verified direct customers and from our authorized dealer network, including Home Depot, Lowe's, Amazon and other Sunstone dealers.
This appliance jacket is pretty solid and feels well-built. It took a bit more fiddling than I expected to get my power burner to sit just right, even with the 'universal' design. Once it's in, though, it's secure and looks good.
Glad I got this for my Sunstone power burner. It fit my island cutout perfectly and made install easy. Looks clean and finished, and I feel safer with it in there.
I'm a contractor and I always recommend appliance jackets for outdoor kitchens. This one is well built and protects the surrounding cabinets from heat. Plus it makes the whole setup look professional.
The stainless is heavy duty and looks like it'll hold up outside. I had to adjust the internal brackets a little to get my power burner to sit flush, but it wasn't hard. Good buy for the price.
Does exactly what it's supposed to, gives my power burner a safe, clean housing. Size was accurate for my cutout. Practical piece that makes my outdoor cooking setup feel complete.
