1 / 7Key features
- Fits RUBY4B, RUBY4BIR and grills up to a 34" W x 12" H x 22" D cut-out
- Double-walled 304 stainless steel, zero clearance
- Raises the grill 1" above the counter
- Pass-through venting for heat and gas
- Covered utility ports
- Built-in or post-mount with accessories
Description

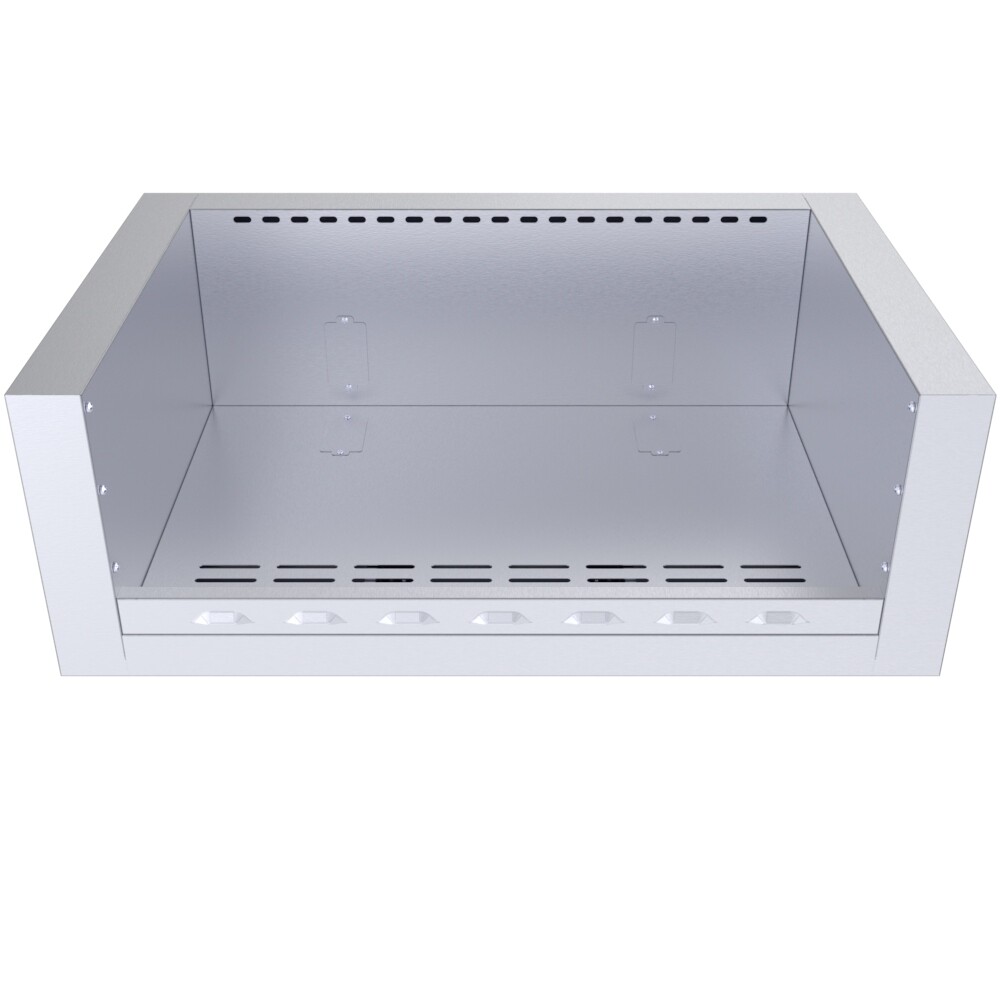

The 40" Sunstone Universal Appliance Jacket (SUNJK40) is built for the RUBY4B and RUBY4BIR and takes many other gas and hybrid grill brands out of the box with minor assembly. It is double-walled 304 stainless steel and gives the grill a heat barrier and proper venting inside an outdoor kitchen or BBQ island.
It fits most grills with a maximum cut-out of 34" W x 12" H x 22" D. The grill rests on the upper rim, hangs free inside the jacket and sits 1" above the counter. A self-supporting raised ledge runs around the sides and back, and the jacket is a zero clearance design.
Vents at the lower front and upper back edges pass excess heat and gas through. Covered utility ports let you open only the side your gas or electrical line uses. It works with natural gas or propane. Install it built-in, or as a post-mount grill with the matching accessories. Fastening a cabinet peg-leg at each bottom corner lets you set the jacket and grill on a picnic table or blocks before the island is ready. See our warranty page for coverage.
| Name | 40" Sunstone Universal Appliance Jacket - SUNJK40 |
|---|---|
| Item No. | SUNJK40 |
| Series | Grill & Burner Jackets |
| Product size | 40" W |
| Cut-out | 38-3/4" W × 24-1/4" D × 13" H |
Specifications
| Width | 40" |
|---|---|
| Cut-Out Size | 38-3/4" W × 24-1/4" D × 13" H |
| Material | 304 Stainless Steel |
| Assembly | Minor Assembly Required |
| Installation | Built-in, Post-Mount (with accessories) |
| Clearance | Zero Clearance Design |
| Grill Elevation | Raises Grill 1" above Counter |
| Utility Ports | Left/Right Covered |
| Compatible Cut-Out Depth | 22" |
| Max Appliance Size | 34" W x 22" D x 10" H (12" H with the vent panel removed) |
| Max Burner Cut-Out Width | 34" |
| Raised Burner Height | 1" above Counter |
| Zero Clearance | Yes |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $1,423.00 | $1,485.00 | $798.00 | $702.00 | $678.00 |
| SKU | SUNJK40 | SUNJK45 | SUNJK33 | SUNJK29 | SUNJK25 |
| Width | 40" | 45" | 33" | 29" | 25" |
| Cut-Out Width | 38-3/4" | 43-1/2" | 31-1/2" | 27-3/4" | 19" |
| Cut-Out Depth | 24-1/4" | 24-1/4" | 24-1/4" | 24-1/4" | 20-1/2" |
| Cut-Out Height | 13" | 13" | 13" | 13" | 13" |
| Fuel Type | Not listed | Not listed | Natural gas or propane | Not listed | Natural gas or propane |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Assembly | Minor Assembly Required | Minor Assembly Required | Minor Assembly Required | Minor Assembly Required | Minor Assembly Required |
| Installation | Built-in, Post-Mount (with accessories) | Not listed | Built-in, Post-mount (with SUNJKPOST) | High or Low position | Built-in, Post-mount (with SUNJKPOST) |
| Compatibility | RUBY4B & RUBY4BIR, most burners with max 34" W x 12" H x 22" D cut-out | RUBY5BIR & EMCHDZ42, most burners with max 39"W x 12"H x 22"D cut-out | RUBY3B & SUNCHSZ30 | Most burners with max 23" W x 12" H x 22" D cut-out | Power Burners having a maximum cut-out of 19 In |
| Max Appliance Size | 34" W x 22" D x 10" H (12" H with the vent panel removed) | 39" W x 22" D x 10" H (12" H with the vent panel removed) | 26" W x 22" D x 10" H (12" H with the vent panel removed) | 23" W x 22" D x 10" H (12" H with the vent panel removed) | 19" W x 20.5" D x 10" H (12" H with the vent panel removed) |
| Raised Burner Height | 1" above Counter | 1" above Counter | 1" above Counter | 1" above Counter | Not listed |
| Max Burner Cut-Out Width | 34" | 39" | 26" | Not listed | Not listed |
| Design | Not listed | Zero Clearance, Double Walled, Universal Utility Ports | Zero Clearance Design | Not listed | Zero Clearance, Double Walled |
| Clearance | Zero Clearance Design | Not listed | Zero Clearance | Not listed | Not listed |
| You're viewing this | View model | View model | View model | View model |
