1 / 6Key features
- Size: 30" W x 21" H x 4-1/2" D
- Cut-out: 28-1/4" W x 19-1/4" H
- 304 stainless steel: 16 gauge frame, 18 gauge double-lined door panels
- 4" deep interior mounting flange with pre-drilled holes
- Doors open 180 degrees
- Paper towel holder on the left door; height-adjustable speed rails on both sides
- Top and bottom magnets; curved bar pull, zinc alloy, chrome plated
- No. 4 horizontal light brushed finish; weight 27 lbs
Description

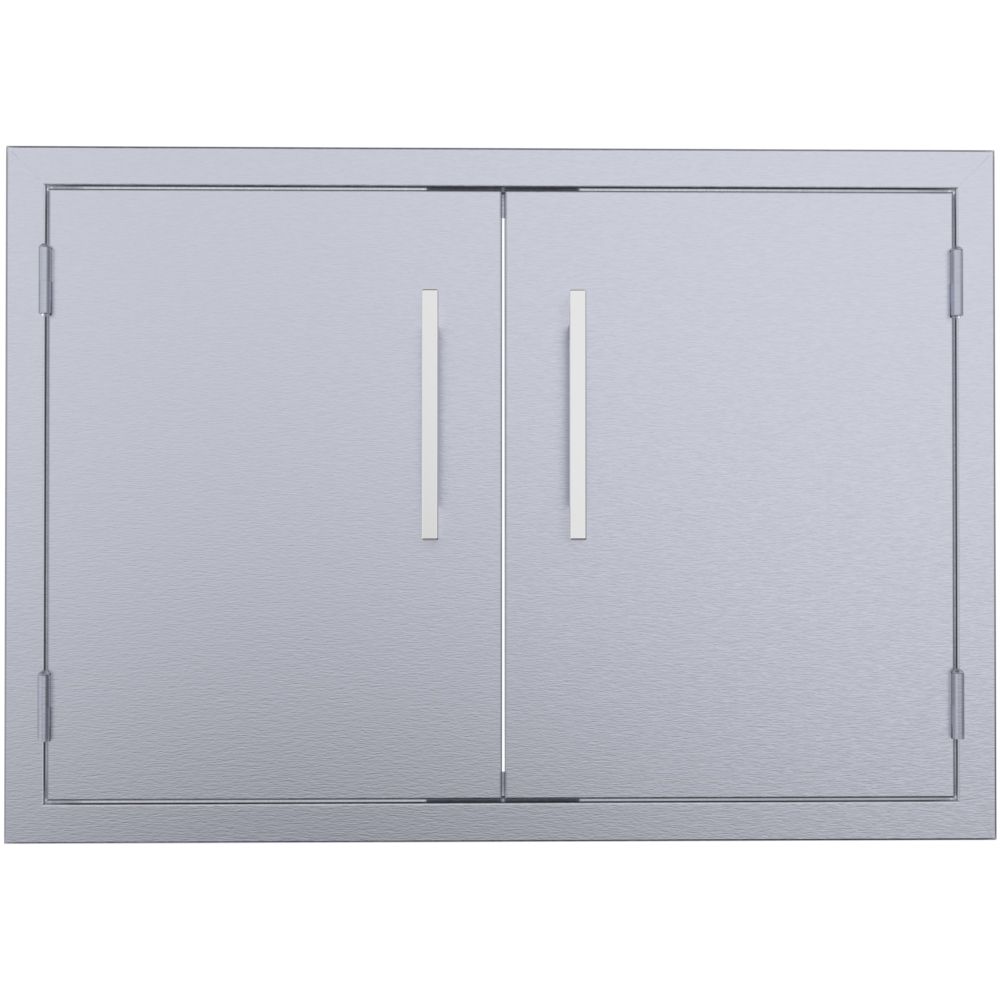

The Sunstone Signature Series Beveled 30" Double Door (B-DD30) has the heaviest-duty construction in the Sunstone component lineup. The frame has a 4" deep interior mounting flange, which makes it a good fit for veneer stone or masonry stone surrounds, and pre-drilled holes around the frame keep it aligned during installation.
It measures 30" W x 21" H x 4-1/2" D, fits a 28-1/4" W x 19-1/4" H cut-out and weighs 27 lbs. Everything is 304 stainless steel: a 16 gauge frame and 18 gauge double-lined door panels, in an even No. 4 horizontal light brushed finish.
The doors open a full 180 degrees, so they swing clear of rough stone edges. Inside, the left door has a paper towel holder, and both sides have speed rails you can set high or low for tools and towels. Magnets at the top and bottom hold the doors closed, and a large curved bar pull in chrome-plated zinc alloy comes with it. The look fits modular cabinet systems and L-shaped kitchen packages. See our warranty page for coverage.
| Name | Sunstone Signature Series 30" Beveled Double Door - B-DD30 |
|---|---|
| Item No. | B-DD30 |
| Series | Signature Series Beveled Style |
| Product size | 30" W × 21" H × 4-1/2" D |
| Cut-out | 28-1/4" W × 19-1/4" H |
Specifications
| Type | Double door |
|---|---|
| Series | Signature Series Beveled Style |
| Style | Beveled |
| Dimensions | 30" W × 21" H × 4-1/2" D |
| Cut-Out Size | 28-1/4" W × 19-1/4" H |
| Doors | 2 |
| Material | 16 Gauge 304 Stainless Steel Frame, 18 Gauge 304 Stainless Steel Double-Lined Door Panels, Curved Bar Pull Handles (Zinc Alloy, Chrome Plated) |
| Gauge | 16 gauge |
| Finish | No. 4 brushed stainless |
| Installation | Flush mount (built-in) |
| Weight | 27 lbs |
| Door Opening | 180 Degrees |
| Interior Features | Paper Towel Holder (Left Door), Height-Adjustable Speed Rails (Both Sides) |
| Interior Mounting Flange | 4" Deep |
| Warranty | View warranty |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $324.00 | $374.00 | $323.00 | $323.00 | $273.00 |
| SKU | B-DD30 | B-DD36 | BA-DD30 | BA-VDD30 | BA-DH2027 |
| Type | Double door | Double door | Double door | Double door | Access door |
| Series | Signature Series Beveled Style | Signature Series Beveled Style | Signature Series Beveled Style | Signature Series Beveled Style | Signature Series Beveled Style |
| Style | Beveled | Beveled | Beveled | Beveled | Beveled |
| Width | 30" | 36" | 30" | 30" | 27" |
| Depth | 4-1/2" | 4-1/2" | 3" | 3" | 3" |
| Height | 21" | 21" | 21" | 21" | 20" |
| Cut-Out Width | 28-1/4" | 34-1/4" | 28" | 28" | 25" |
| Cut-Out Height | 19-1/4" | 19-1/4" | 19" | 19" | 18" |
| Doors | 2 | 2 | 2 | 2 | 1 |
| Door Swing | Not listed | Not listed | Double doors | Double doors | Reversible: rotate 180 degrees for left or right swing |
| Handles | Curved bar pull, zinc alloy, chrome plated | Curved bar pull, zinc alloy, chrome plated | Not listed | Not listed | Not listed |
| Material | 16 Gauge 304 Stainless Steel Frame, 18 Gauge 304 Stainless Steel Double-Lined Door Panels, Curved Bar Pull Handles (Zinc Alloy, Chrome Plated) | 16 Gauge 304 Stainless Steel Frame, 18 Gauge 304 Stainless Steel Double-Lined Door Panels, Curved Bar Pull Handles (Zinc Alloy, Chrome Plated) | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panels | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panels | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge |
| Finish | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless |
| Installation | Flush mount (built-in) | Built-in | Built-in | Built-in | Built-in |
| Weight | 27 lbs | 30.8 lbs | Not listed | Not listed | Not listed |
| Door Opening | 180 Degrees | 180 Degrees | Not listed | Not listed | 120 degrees |
| Item Number | Not listed | Not listed | BA-DD30 | BA-VDD30 | BA-DH2027 |
| Venting | Not listed | Not listed | Non-vented | Vented | Non-vented |
| Hinges | Not listed | Not listed | Built-in hinge pins (no exposed hinges) | Built-in hinge pins (no exposed hinges) | Built-in hinge pins (no exposed hinges) |
| Depth To Frame Hole | Not listed | Not listed | 1-3/4" | 1-3/4" | 1-3/4" |
| Handle | Not listed | Not listed | Signature Series Beveled Handle (zinc alloy, chrome plated) | Signature Series Beveled Handle (zinc alloy, chrome plated) | Signature Series Beveled Handle (zinc alloy, chrome plated) |
| Interior Features | Paper Towel Holder (Left Door), Height-Adjustable Speed Rails (Both Sides) | Paper Towel Holder (Left Door), Height-Adjustable Speed Rails (Both Sides) | Not listed | Not listed | Not listed |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
