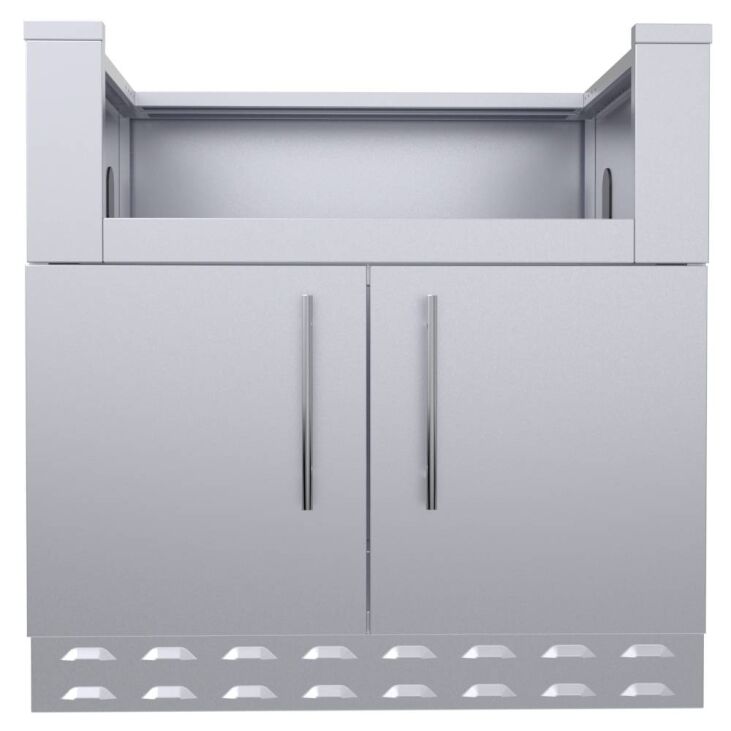

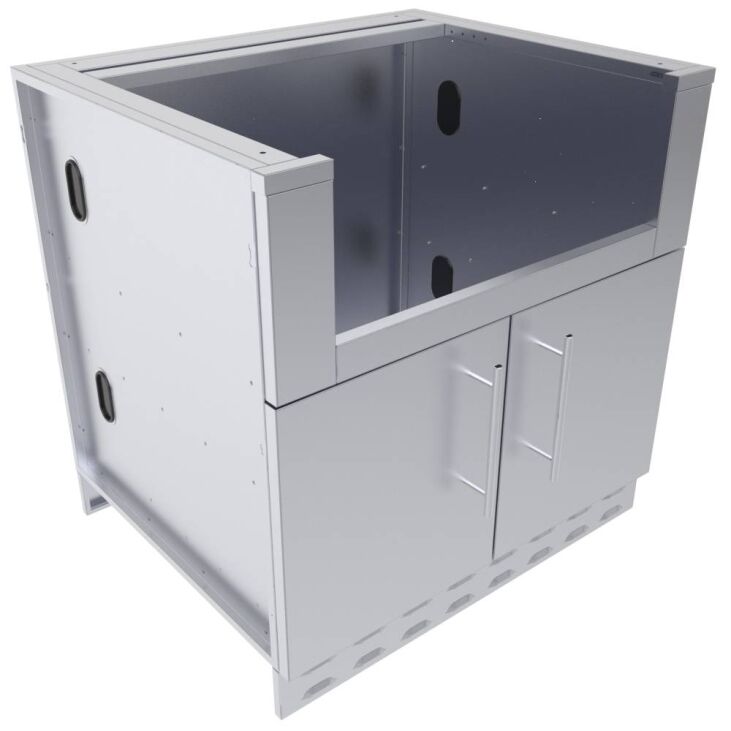

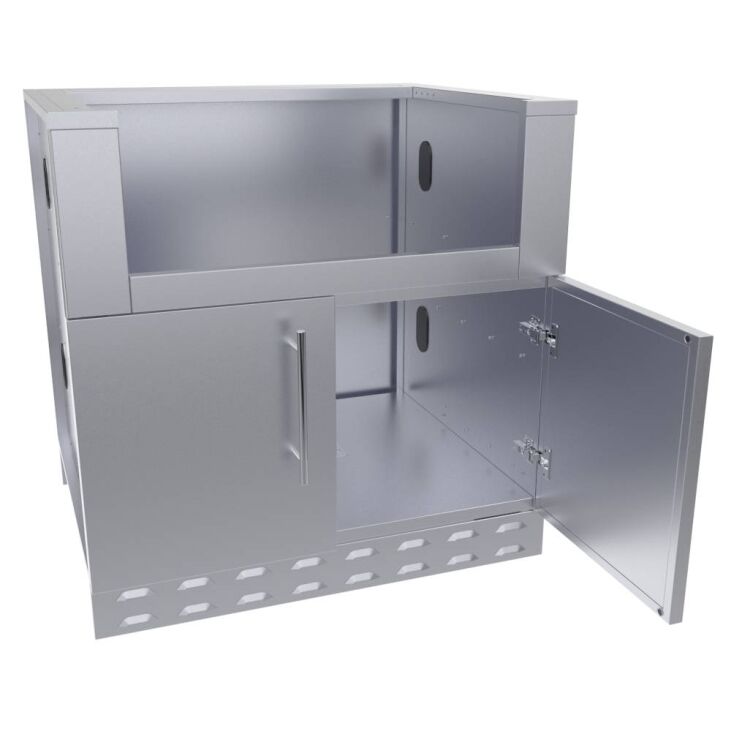

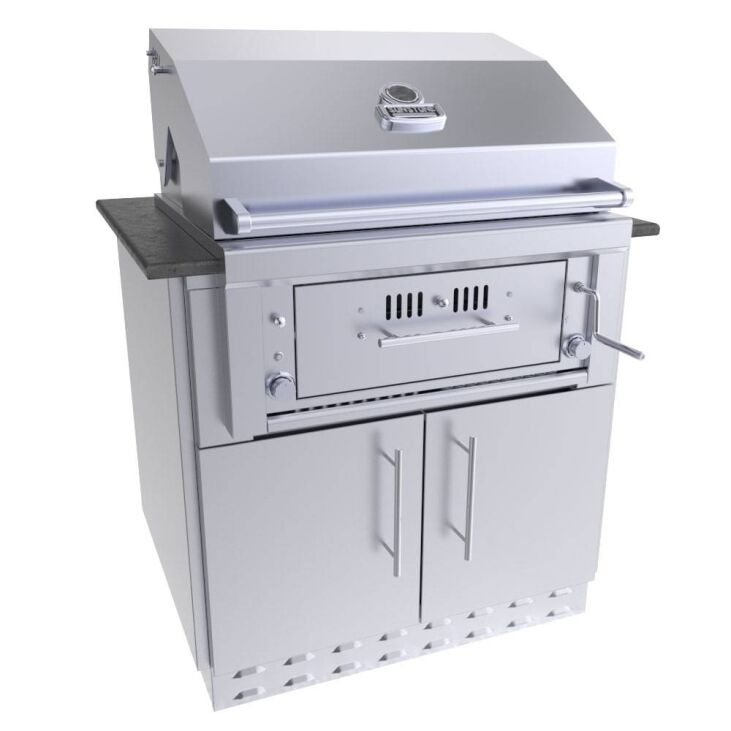

The 34 In. Sunstone Gas Hybrid Charcoal Grill Base Cabinet is uniquely designed to receive multiple Types of either Gas Grill or Charcoal Grill Brand Models right out of the box easy installation. The appliance cabinet has double access doors with plenty of storage and makes use of multiple utility access ports at the base for drainage and side ports for water/gas/electrical lines. The cabinet comes Fully Assembled, only requiring to fasten on the four included Peg-Legs, screw in place each 304 SS Rod Handles, and mount the Front and Back Kick-Plates. This Cabinet makes use of a “TRIM-KIT” that is installed on the front face of the cabinet, which adapts the cabinet to fit your preferred grill and is compatible with Grills “CUT-OUT” Sizes between 23-7/8 In. to 28-1/2 In. Width by 10-3/8 In. to 12-3/4 In. Max Height with a counter at 3/4 In. Height with Filler Rail installed or removed. Additional Height can be adjusted by Removing Bottom Filler Rail or by adding a Thicker Counter or Backer Board. Please Specify the Correct “TRIM-KIT” to be included with the cabinet to fit your grill, if your grill is any of our Models we will automatically include the correct Trim-Kit. Please refer to the Cabinets Specification Sheet for more information, see the second page showing the various insert sleeve dimensions this refers to your grills “Cut-Out” Dimension – match this up to the correct “Trim-Kit” and specify this piece on your order.

• Works with SUNCHSZ30
• Lifetime Structure Warranty
• 304 SS Structure
• 304 SS Rod Handles
• Replaceable Face Panel
• Front Vented Kick-Plate
• Rear Solid Kick-Plate
• Soft-Close Drawer Tracks
• Easy Pin-Lock Installation
• Removable Counter Rail

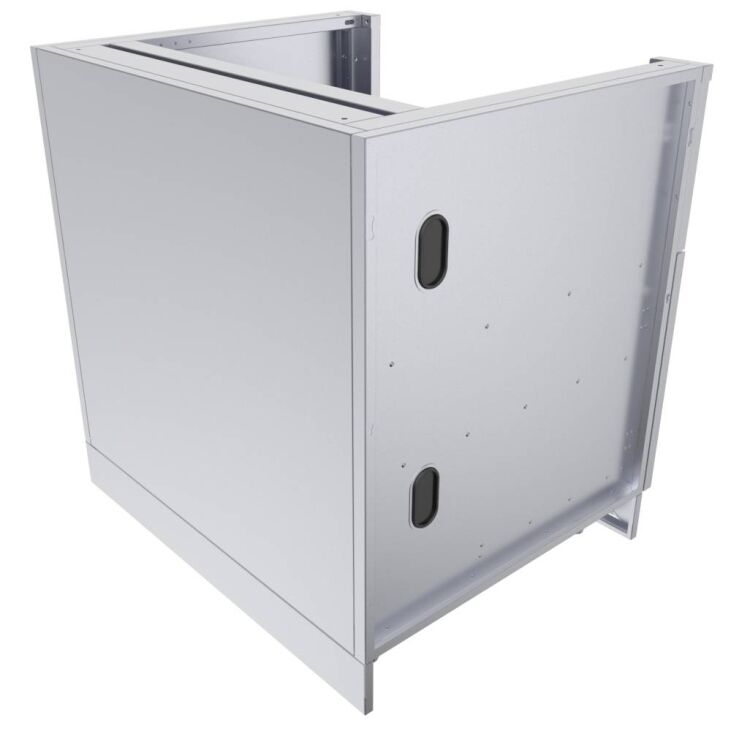

• Covered Side Wall Access Ports
• 4 Adjustable Peg-Legs
• Optional Wheel Casters

Separately purchase the Side Cabinet End Panel & End Kick-Plate Item No. SCC25KP, & SCC27EP
