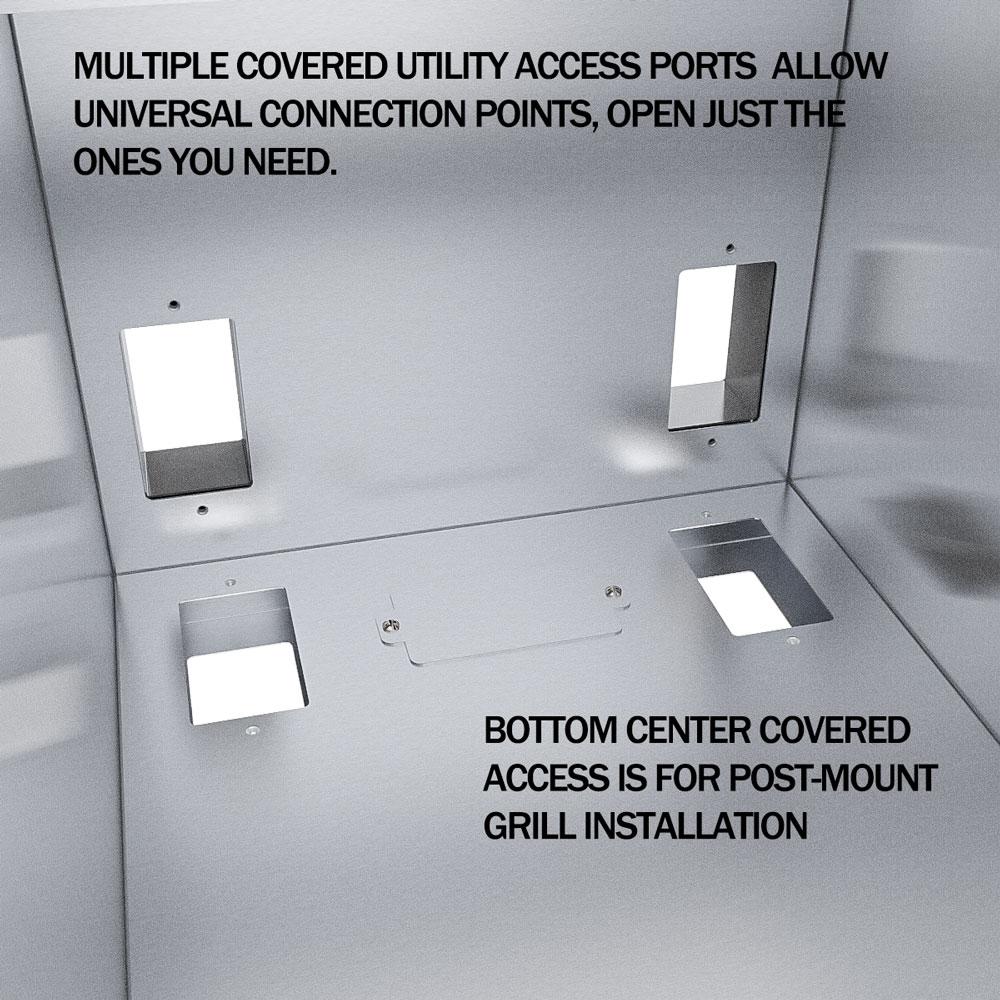

The 20 In. Sunstone Universal Appliance Jacket for most Power Burners having a maximum cut-out of 14 In. Width by 12 In. Height by 22 In. Depth. Refer to the product Specification Sheet for specific appliance detail. The universal jacket is uniquely designed to receive multiple Burner Brand Models right out of the box with minor assembly. The jacket is a safety essential when installing your burner into any outdoor kitchen or BBQ island enclosure ensuring you have an adequate heat barrier and proper venting. This jacket has double-walled construction in all 304 stainless steel with a sturdy self-supporting raised ledge around the sides and back that adds one more layer of quality to your outdoor kitchen. The Sunstone Jacket is made for perfect airflow with in/out vents in the lower front bottom edge and upper back edge which features open vents allowing pass-through venting of all excess heat and dangerous gasses. It has a universal design with covered utility ports on either side depending on which side your appliance gas or electrical is connected, you only need to open the specific ports you are using, and others stay covered for safety. The appliance is placed on top of the upper rim, so the burner is free hanging within the interior of the jacket enclosure. In addition, you can fasten in the bottom of each corner a cabinet peg-leg allowing you to place the jacket with burner onto any surface like a picnic table or blocks for when you’re ready for your new burner or grill but not ready for the whole kitchen island. See the Jacket Specification Sheet for more information, the second page refers to your burner “Cut-Out” Dimensions.

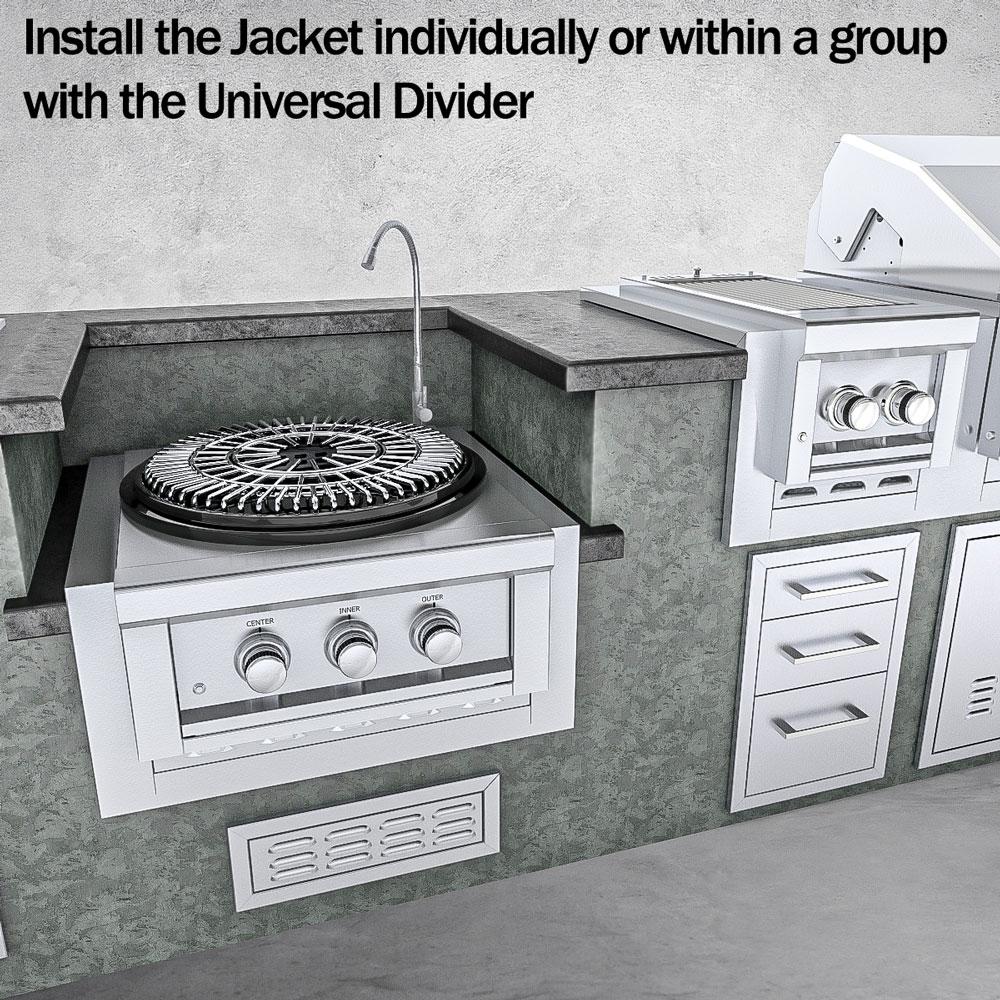

Convert your jacket into a Post-Mount Grill by purchasing the Jacket Side Wings & Post Mount Item No. SUNJKWING, & SUNJKPOST. Additionally, purchase the SUNJKDIV6 to expand the jacket package with multiple other appliances all within a single cut-out.

  • Sleeve Opening: 14″W x 12″H x 22″D
  • Lifetime Structure Warranty
  • 304 Stainless Steel Structure
  • Raises Burner 1 Inch above Counter
  • Minor Assembly Required
  • Zero Clearance Design
  • Universally Compatible
  • Left/Right Utility Ports
  • Double Walled Barrier
  • Pass-Through Venting

Disclaimer: The trademarks used in the “Product Option” Bullet Points above belong to their respective owners who do not sponsor nor are they affiliated with Sunstone Metal Products LLC. The specific product Cut-Out Dimensions have not been directly confirmed by any Sunstone Metal Products LLC, representative or employee. Use own discretion to confirm exact product fit.

20″ Sunstone Universal Appliance Jacket – SUNJK20

$778.00

In stock

  • Universally Compatible
  • Double-Walled Insulated
  • 304 Stainless Steel Structure
  • Product Size: 20-1/4"W x 25-3/4" D x 14-1/2" H
  • Cut-Out Size: 19" W x 24-1/2" D x 13" H
  • Sleeve Opening: 14"W x 12"H x 22"D
  • Sleeve Opening:

    14″ Width x 12″ Max Height or 10″ w/Vent Panel x 22″ Depth or 20-1/2″ Depth w/Panel Installed

    Product Options:

    16" Blaze® Power Burner, 16" Blaze® Premium Power Burner, 16" RCS® Pro Power Burner

    Post-Mount Grill Upgrade

    Add the Post and Wings to convert the Jacket into a Post-Mount Grill. Additionally add the 6" Divider to Group Multiple Jackets together either for standard Island Installation or within groups of Post-Mount Grill Packages.

    (+$698.00)
    22-1/2"H Post fixture mount for grill jacket
    (+$258.00)
    14"W X 20-1/2"D Two adjustable wings w/brackets for grill jacket
    (+$358.00)
    6" Sunstone Universal Appliance Jacket “Divider”
    Product price: $778.00
    Total options:
    Order total:

    20″ Sunstone Universal Insulated Appliance Jacket
    20-1/4″W x 25-3/4″ D x 14-1/2″ H (Product Size)
    19″ W x 24-1/2″ D x 13″ H (Cut-out)
    48LBS (Product Weight)
    14″ W x 20-1/2″ D x 10″ H (Sleeve Dimensions)
    24″W x 28″ D x 11″ H (Package Size)/53 LBS

    Product Documents

    Specs & Guides

    SKU SUNJK20 Categories , Tag Vendor: sunstonemp
